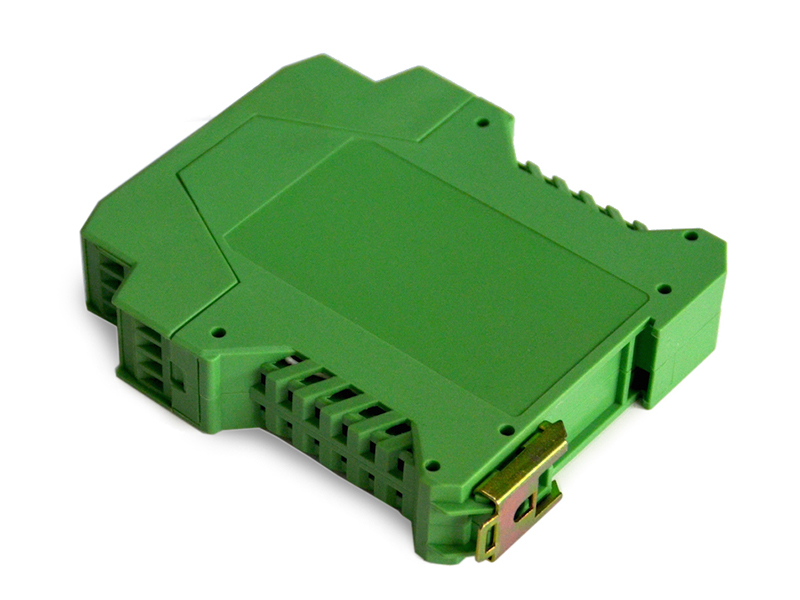

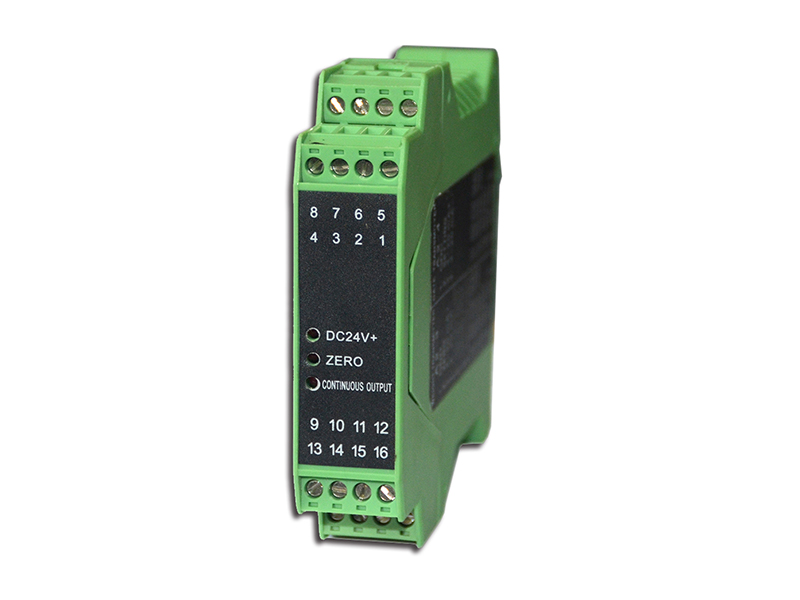

Y100 weighing transmitter
Y100-C Applicable to strain gauge load cell. Y100-I Transfer the serial data into analog output.
Specifications
Y100-C
Applicable to strain gauge load cell. Adopting standard socket type base. Analog output: 4-20mA or 1-5V. Serial output: RS232 | RS485 – command type or continuous type. Can be fixed with remote display. Parameter setting & calibration via RS232. With the ZERO input function. Fixed to the converter.
Y100-I
Transfer the serial data into analog output. Adopting standard socket base. Calibration can be done via RS232. F.S. can be set via RS232. Input: RS232 | RS485 serial signal. Output: 4-20mA/1-5V. Baud rate: 2400bps. – 8 digits data,no odd/even verifying bit,1 stop digit.
Models
Part No. | 110067 | 110068 |
Models | Y100-C | Y100-I |
Apply for | Load Cell | Indicator |
Approval | CE | CE |
Weight | 0.2kg | 0.2kg |
Y100-C
Power
DC 24V/300mA
Excitation Voltage
DC5V
Sensitivity
2mV/V
A/D Rate
200 times/second
Max. Digital Output
> 1/30,000
Max. Analog Output
0.004mA (12bit)
Y100-I
Power
DC 24V/300mA
Input
Continuous RS232
RS485
Output
4-20mA
1-5V
Max. Analog Output
0.004mA (12bit)
Packing Size
10 x 8 x 7 cm
Packing Weight
0.2kg
