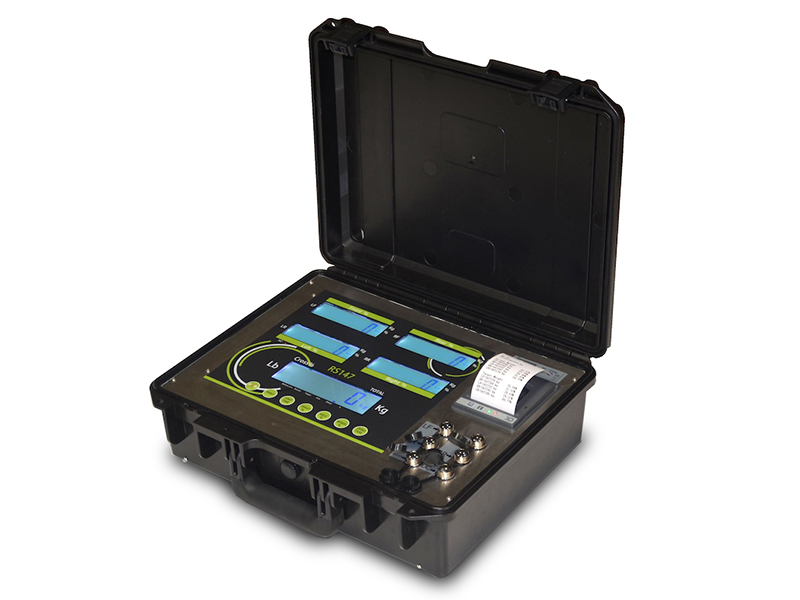

XM4 wheel weighing indicator
Specifications

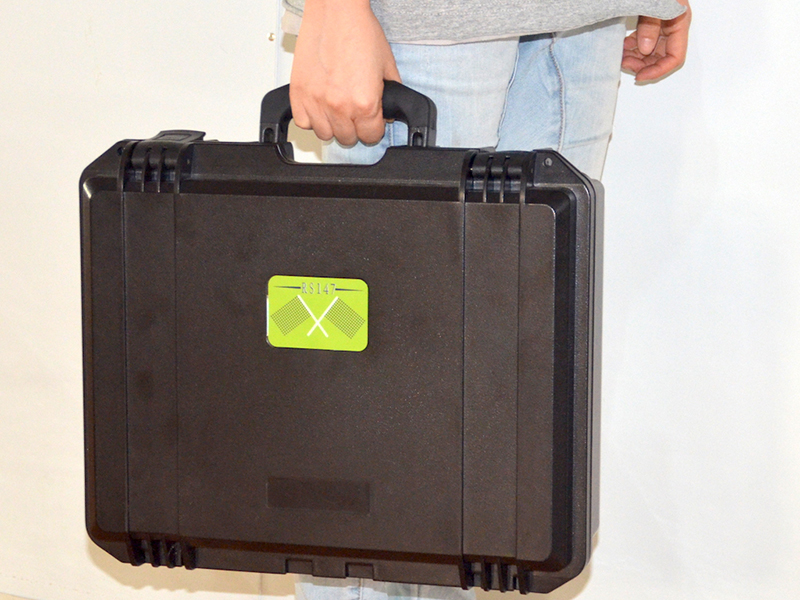

ABS suitcase. Multi-line LCD display. Kg/lb unit. RS232 interface. Built-in thermal printer. Weighing records retrievable. Three working mode: V1.02 – Special Edition for race cars. Weight/percentage of each wheel. Weight/percentage of each axle. Weight/percentage of cross axle. Target weight calculation of each wheel — For getting 50:50 driving experience. Kg/lb unit V1.03 – Single Axle Weighing (1 or 2wheels). Up to 9 axles totalization. V1.04 – Double Axle Weighing (1 or 4 wheels). Up to 9 axles totalization.
Models
| Part No. | 110060 | 110061 | 110062 |
| Models | XM4-R | XM4-2 | XM4-4 |
| Application | Race Cars | Single Axle | Double Axle |
| Approval | CE | CE | CE |
| Weight | 4.9kg | 4.9kg | 4.9kg |
Power
100-240V – 12V Adaptor
Rechargeable Battery: 6V10Ah
Estimated Battery Life: 40 hours
Charge Time: 8 hours
Excitation Voltage
DC5V
1-16 * 350Ω or
1-32*700Ω load cells
Analog Input
0 – 10mV/V
A/D Rate
8 times/second
Display Resolution
1/3,000
Display
LCD with backlit
Units
Kg | lb
Output
RS232
Bluetooth (optional)
WiFi (optional)
Operating Temperature –
10°C – 40°C
Storange Temperature
-25°C – 55°C
Relative Humidity
≤85% non-condensing
Protection
IP54
Packing Size
71.5*45.5*50.5cm (6pcs)
Packing Weight
31kg (6pcs)
