TiTAN Heavy Duty Axle Scale

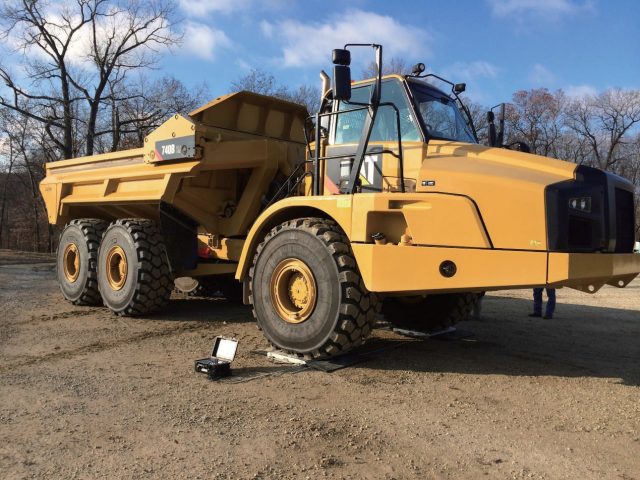

All HiWEIGH axle scales and wheel scales are designed and manufactured with high-quality TiTAN series, specially designed for heavy-duty mining trucks with a capacity of up to 200 tons per mat, and are widely used in different mines around the world. With the XM6 weight indicator, you can get the readings of each wheel, each axle and total weight.
Specification
Capacity: 50T | 100T | 200T*
Platform Size: 1x1m | 2x3m
Material: Durable Alloy Steel * Capacity per each platorm
Portable Weighing For: Mining Dump Trucks | Haul Trucks Heavy Transport Airplane
- Weight unit in Kg or lb
- Dynamic or statc weighing
- 2, 4 or 6 pads confifigured as a set
- Cable connected and wireless optonal
- Touch screen display, easy-to-use
- Water-resistant, corrosion-proof
- Shock-resistant design for accurate weighing
- XM6 Indicator with built-in printer
- Batery working tme of 40 hours
- Auto power offff functon
- Records stored internally
- Runs on Windows CE 6.0 system
- 2/4/6/8 channel system selectable
- RS232, USB 2.0 default output for cable version
- USB 2.0 and WiFi as default for wireless version
- Records of wheel, axle and total weight
- Excel text or database fifile output
- 4 Cores ARM CPU, 2GB memory, 4GB hard disk
Models
| Model | Part No. | Capacity | Size |
| TiTan1 | 611015 | 50t | 1x1m |
| TiTan2 | 611016 | 100t | 2x3m |
| TiTan3 | 611017 | 200t | 2x3m |
Power
120V/240V AC/DC adaptor
Rechargeable Battery: 6V10Ah
Estimated Battery Life: 40 hours
Charge Time: 8 Hours
Excitation Voltage
DC5V±2%
Analog Input Signal
-1 – 10mV
Sampling Speed
200 times/second
Non-Linearity
<0.01%
Power Consumption
70mA – standby
1000mA – printing
Display
8” TFT
Units
Kg | lb
Output
RS232
USB
Bluetooth (optional)
WiFi (optional)
Operating Temperature
0°C – 40°C
Storange Temperature
-25°C – 55°C
Relative Humidity
≤80% non-condensing
Temp. Coefficient
5ppm/°C
Protection
IP54
Approval
CE
Packing Size
51*35*22cm
Packing Weight
6.7kg
