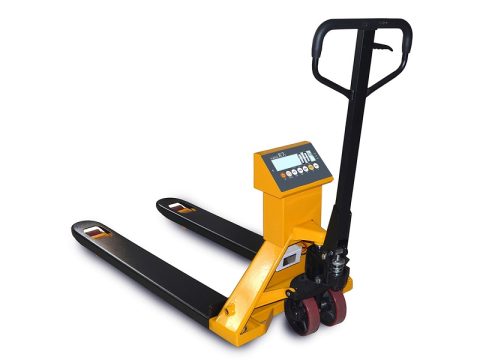

PH PHS Pallet Truck Scale | Pallet Jack Scale
Heavy structure design with big capacity up to 3000kg, 540mm or 680mm width for selection, bright LED display.
General Details
Features
- Bright 1.2″ LED display
- Accumulate up to 2000 records
- PHS made with SUS304 S.S.
- Four high-quality IP67 shear beam load cells
- 540mm or 680mm for different market
- Optional 2,500kg/5,000lb or 3,000kg/6,000lb
- Optional thermal printer
Functions
- Zero/Tare
- Hold
- Counting
- Animal weighing
- Accumulation
Models
| Model | Part No. | Size | Capacity | Division |
| PH | 622109 | 1150x540mm | 2,000kg | 0.5kg |
| PH680 | 622110 | 1220x680mm | ||
| PHS | 622111 | 1150x540mm | ||
| PHS680 | 622112 | 1220x680mm |
Techical Info
Plaform Sizes
1150 x 540mm
1220 x 680mm
Capacity
2000kg
3000kg – optional
Display Resolution
0.5kg | 1.0kg
Load Cell
M28
Load Cell Protection
IP67
Power
100-240V – 10V adaptor
Rechargeable Battery: 6V4Ah
Display
LED – 30mm
Unit
Kg/lb
Output
RS232 *2
Operating Temperature
-10 – 40°C
Order Enquiry
Contact form description text
Approvals
CE
Download
