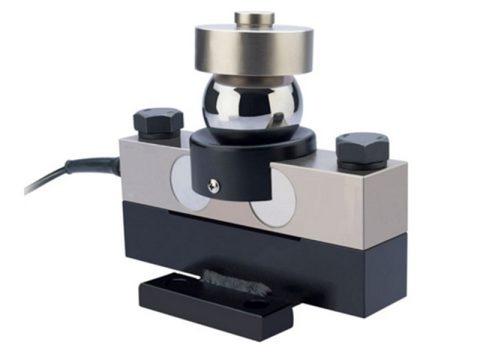

M9 M9M Double-ended Beam Load Cell
Alloy steel material with IP68 protection, nickel plated process, with mounting cups -easy to center-positioned by itself. Up to 40000kg capacity
Robust Weighbridge and Truck Scale Load Cells
M9 – analog load cell
M9M – OIML approved
M9D | M9MD – digital load cells
Alloy steel material
Heavy-duty structure
IP68 protection class
Nickel plated process
With mounting cups
-easy to center-positioned by itself
Up to 40000kg capacity
OIML C3 class, stable quality
Easy to install and maintain
For weighbridges, rail scales, etc.
Default of 12m cable (optional of 16m/20m cable)
Models
| Part No. | 120273 | 120274 | 120275 | 120276 |
| M9 | 10t | 20t | 30t | 40t |
| Part No. | 120277 | 120278 | 120279 | 120280 |
| M9D | 10t | 20t | 30t | 40t |
| Part No. | 120281 | 120282 | 120283 | 120284 |
| M9M | 10t | 20t | 30t | 40t |
| Class | C3 | |||
| IP | IP68 | |||
Capacity
10-40t
Sensitivity
2.0 +/- 0.002mV/V
Accuracy
C3
Creep (30 Min)
± 0.02%F.S.
Zero Balance
± 1%F.S.
TE ZerO
±0.02%F.S/10℃
TE Span
±0.02%F.S/10℃
Input Resistance
775 ± 5Ω – M9
700 ± 7Ω – M9M
Output Resistance
700 ± 5Ω
Insultation Resistance
≥5000mΩ
Opearting Tem Range
-30…65℃
Temp Compensation
-10…40℃
Safe Load
150% F.S.
Ultimate Limitation
300% F.S.
Recommended Excitation
5-12VDC
Protection
IP68
Contact form description text
CE and OIML
