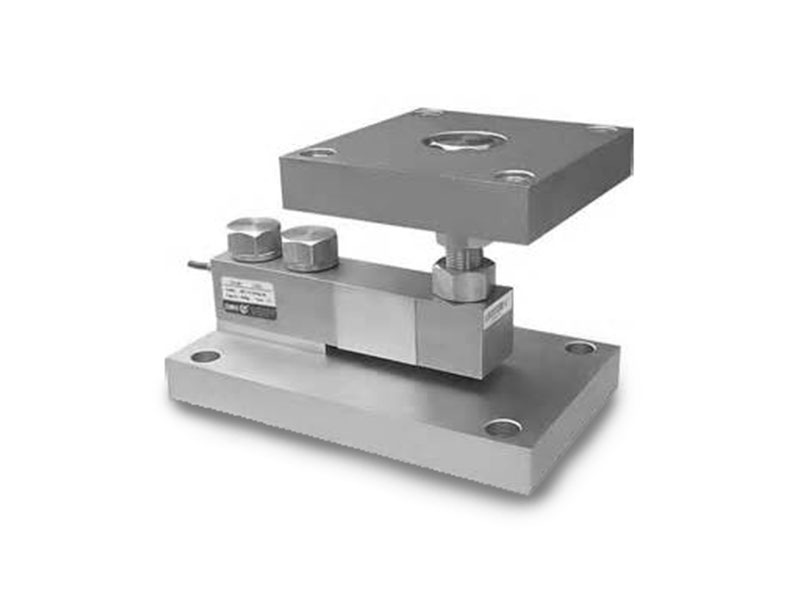

M28M M28SM Weighing Module
General Details
M28K_M28SK
M28K: Weighing module for M28 and M28M.
M28SK: Weighing module for M28S,M28B,M28I,M28D.
Model
| Part No. | 120301 | 120302 | 120303 | 120304 |
| Model | M28K2 | M28K5 | M28SK2 | M28SK5 |
| Capacity | 0.1-2.5t(SE) 0.1-5klb(SE) | 2.5-5t 5-10klb | 0.1-2.5t(SE) 0.1-5klb(SE) | 2.5-5t 5-10klb |
| Type | Alloy steel | Stainless steel | ||
| Weight | 5.5kg | 7.5kg | 5.5kg | 7.5kg |
Techical Info
Capacity
500-2500kg
Sensitivity
2.0 ± 0.002mV/V
Accuracy
C3
Creep (30 Min)
0.02%FS
Zero Balance
± 1% Emax
TCO
0.02%FS/10℃
TC Span
0.02%FS/10℃
Protection
IP67
Input Resistance
380 ± 5Ω
Output Resistance
350 ±2Ω
Insultation Resistance
≥5000mΩ
Opearting Tem Range
-30…70℃
Safe Load
150% F.S.
Overload Limitation
200% F.S.
Recommended Excitation
5-12V
Maximum Excitation
15V
Order Enquiry
Contact form description text
Approvals
OIML
