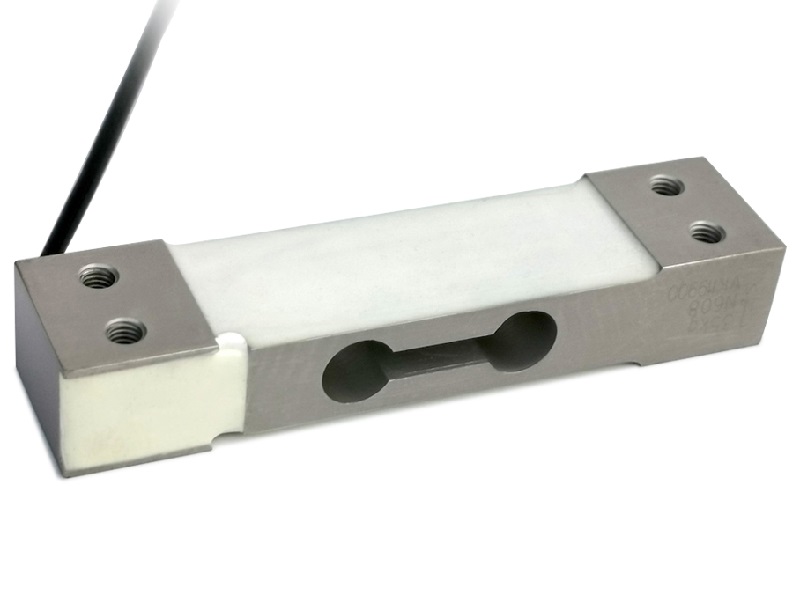

M13 M13M Single Point Load Cell
OIML approved. Aluminum alloy material. The most popular single point load cell being used in the table top scales, counting scales, price computing scales and other retail scales.
The most popular single point load cell, a perfect load cell for the table scales, counting scales, price computing scales and other retail scales, also a good load cell for the unattended retail weighing solutions.
OIML approved.
Aluminum alloy material.
Big capacity up to 50Kg.
Anodized load cell body.
Recommended platforms: from 200*200mm to 300*300mm.
default of 0.4m. Cable dia 3.9mm.
longer cable customized.
| Part No. | 120001 | 120002 | 120003 | 120004 | 120005 | 120006 | 120007 |
| M13 | 5kg | 10kg | 20kg | 30kg | 35kg | 40kg | 50kg |
| Part No. | 120008 | 120009 | 120010 | 120011 | 120012 | 120013 | 120014 |
| M13M | 5kg | 10kg | 20kg | 30kg | 35kg | 40kg | 50kg |
| Class | C3 | ||||||
| IP | IP65 | ||||||
Capacity
5 |10 | 20 | 40 | 50Kg
Sensitivity
2.0 ± 0.2mV/V
Accuracy
C3
Creep (10 Min)
0.015%FS
Zero Output
± 2% Emax
TE* Zero
0.1%FS/10℃
TE* Sensitivity
0.02%FS/10℃
Input Resistance
395 ± 10Ω
Output Resistance
350 ± 5Ω
Insultation Resistance
≥5000mΩ(50V)
Opearting Tem Range
-10…40℃
Non-linearity
± 0.02% Emax.
Repeat
± 0.01% Emax.
Overload Limitation
150% F.S.
Recommended Excitation
5-12VDC
Protection
IP65
