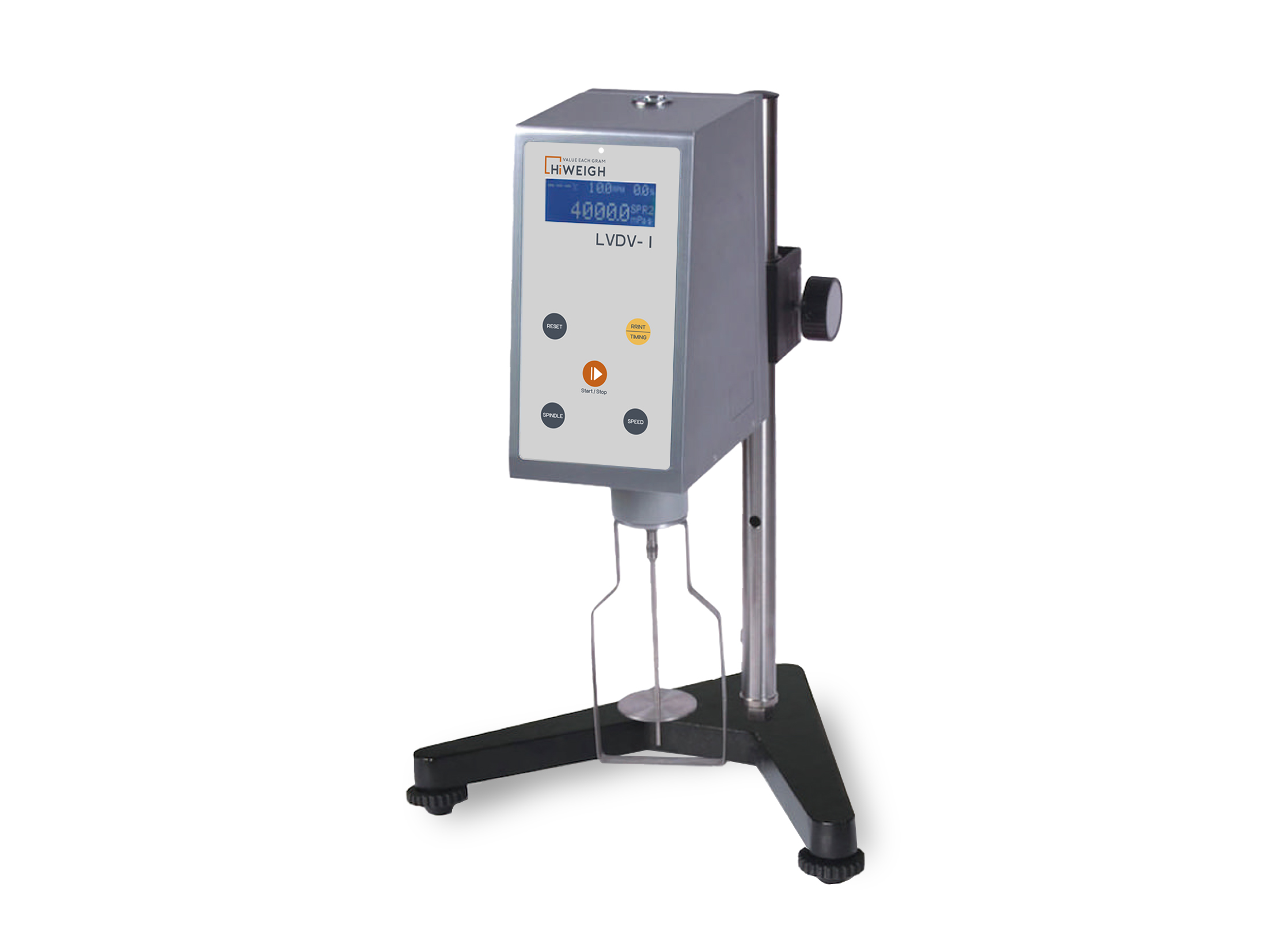

LVDV-Ⅰ/ RVDV-Ⅱ
Most popular digital viscometers Compatible with top brand Up to 3,200,000,000mPa.s L1-L4 and R2-R7 spindles Optional LO or R1 spindles
Features
- 16-bit micro-processor
- CVT (stepless) speed adjust
- Bright LCD display with backlight
- Nine operation buttons
- Height adjustable
- Bubble level on top
- Adjustable rubber feet
- RTD temperature probe
- LVDV-1 and LVDV-2 with L1-L4 spindles
- Other models with R2-R7 spindles
- Optional L0 or R1 spindle
- Optional Heater
- Optional printer
- Optional data collecting and statistics software
Display
- Speed | Viscosity | Shear rate
- Temperature | Spindle number
- Torque percentage
- Max.viscosity in current speed
| Models | LVDV-Ⅰ | RVDV-Ⅱ |
| Range (mPa.S) | 12-6M | 40-4-M |
| Speed (r/m) | 0.1 – 99.9 | 0.1 – 200 |
| Spindles | 4 Types (L1 – L4) | 6 Types (R2 – R7) |
| Accuracy* | ± 1% | |
| Repeatability* | ± 0.5% | |
| Power | 100-240V/50-60Hz AC/DC Adapter | |
| L0 (mPa.S) | 0.6 – 6K | 3 – 60k |
| R1 (mPa.S) | – | 10 – 100k |
| Shipping Info | 40 x 35 x 36cm – 8.0kg | |
* Accuracy and Repeatability for Newtonian fluid
* L0 spindle optional
*M=1,000,000 | K=1,000
