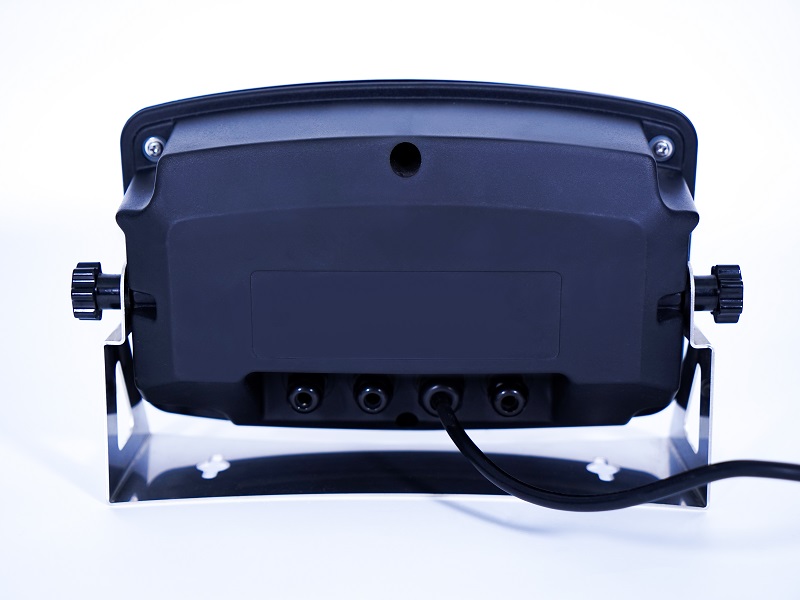

K9A waterproof weight indicator

K9A with Double O-ring for the housing, independent sealed PCB case, rugged PBT housing; with IP67 protection.

General Details

FEATURES

IP67
Independent sealed PBT housing

Double O-rings to seal the housing

Built-in checkweigh function
(Three small LED lights for check weighing alarm)
(Different backlights can be set for different weight reading ranges)
(Optional an external three-color warning light)

FUNCTIONS

  • Hold
  • Checkweigh
  • Animal weighing
  • Counting
  • x10 accuracy
  • Shortcut keys settings
  • Continuous and stable output
  • Multi communication protocols
ModelPart No.
K9 PBT IP68 IP69K101012
K9La PBT IP68 IP69K101013
K9Li PBT IP68 IP69K101014
K9S SUS304 IP67101015
K9SLa SUS304 IP67101016
K9SLi SUS304 IP67101017
K9A PBT IP68101018
K9ALa PBT IP68101019
K9ALi PBT IP68101020
Techical Info

Power
100-240V 50/60Hz AC
9-24V DC
7.4V6800mA | 6V1200mA
Rechargeable battery

Resolution
1/3,000 – 1/30, 000

Material
PBT
Protection
IP67

Load Cell
1-6  350Ω 1-12  700Ω

Display
FSTN multi-color backlight
30mm height

Units
Kg | lb |g | oz

Output
RS232 * 2
optional Bluetooth
optional WiFi

Operating Temperature
-10°C – 40°C

Order Enquiry

Contact form description text

  • 6 + 62 =
Approvals

CE
