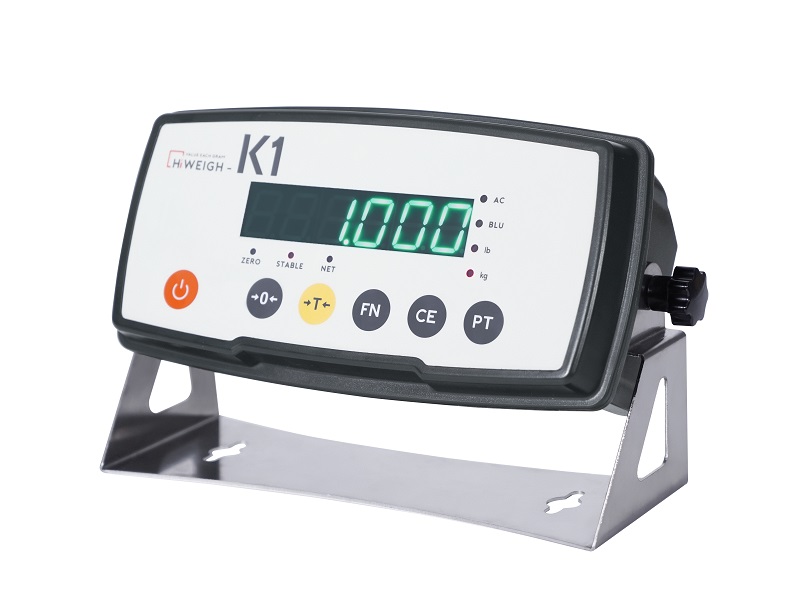

K1 weighing indicator

The K1 back case also has rubber stands, which can be placed directly on the desktop. Default stainless steel bracket.

General Details

Functions

  • Counting
  • Animal
  • Over/Under
  • Dynamic
  • Printing
  • x10 accuracy
  • Classifying
  • Multi range selectable
  • Linearity calibration selectable
  • Multi communication protocols

Default with RS232 interface
(Which makes it work with printer, remote display or other devices.)

Double O-rings, air and moisture vent.

Fast respond

PMMA screen protector
(Avoid being damaged by sharp objects)

Display 180° rotation installation
(Read the weight from two directions)

5V USB Type-C interface for power
(Mobile phone charger or any other 5V USB Type-C charger)

ModelPart No.
K1 ABS IP67101001
K1C ABS IP67101002
K1S SUS304 IP67101003
K1CS SUS304 IP67101004
Techical Info

Power
100-240V 50/60Hz AC
4.8-5.5V DC
3.7V4000mA Li-ion Battery

Display
Green LED-108*25mm

Interface
WiFi (Optional)
Bluetooth (Optional)
RS485 (Optional)
Hi/OK/Low (Optional)

Excitation Voltage
DC5V
6*350Ω load cells | 12*700Ω load cells

A/D Rate
30 times/second

Material
ABS | SUS304 (Optional)

Protection
IP65

Resolution
1/1,000-1/60,000

A/D Resolution
1,000,000

Storange Temperature
-20℃ -60℃

Operating Temperature
-10℃ -40℃

Units
kg/lb

Order Enquiry

Contact form description text

  • 1 + 92 =
Approvals

CE
