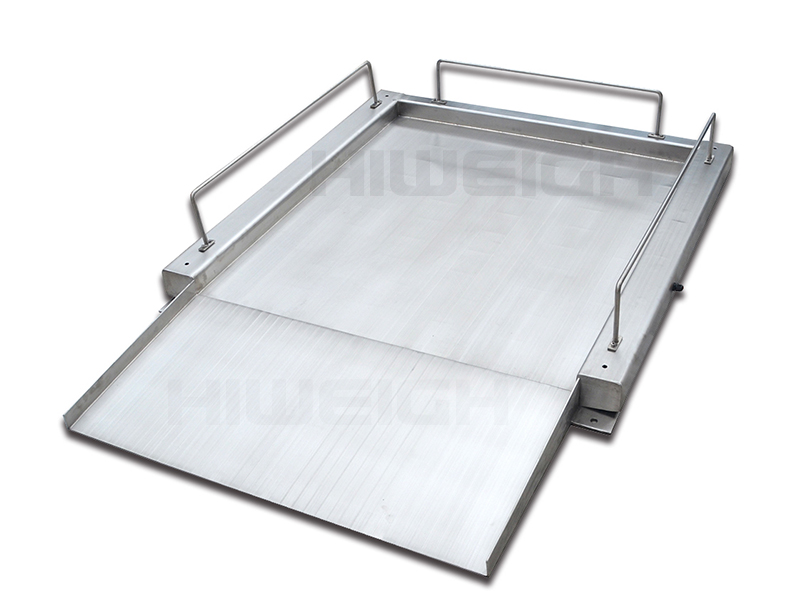

FDRS Stainless Steel Drum Weigher Scale | Barrel Weigher Scale
SUS304 Platform
SUS304 stainless steel material. Low profile design with interior ramp. With protecting guid rails 3 different platform size for selection – customized platform available Polishing finish
M28s | B8D |M28i Load Cell
Standard s.s M28s load cell – Models1.OIML approved s.s M28i load cell – Models2.Optional OIML/NTEP B8D load cell
Optional K7s Indicator
Big backlit FSTN LCD display,the weight can be read clearlyeven in the sun. SUS304 s.s IP66 housing,suitable for harsh environment, with
rechargeable battery, 100-240v power source directly, kg/lb unit exchange, animal weighing function, accumulating, hold, x10 accuracy, counting, zero, tare, printing, etc. Default with 2 RS232 connector,options of Bluetooth or WiFi.
Optional X3WGM Indicator
OIML/EC Type approved. Rechargeable battery, Programming zero tracking, Kg/lb units, counting function, animal weighing, Hold function, accumulation, RS232 interface.
Accessories
ISB | ISC| MDSS|RFS
Models
| Part No. | 100413 | 100414 | 100415 | 100416 | 100417 | 100418 |
| Models 1 | FDRS1015 | FDRS1030 | FDRS1215 | FDRS1230 | FDRS1515 | FDRS1530 |
| Part No. | 100419 | 100420 | 100421 | 100422 | 100423 | 100424 |
| Models 2 | FDRS1015M | FDRS1030M | FDRS1215M | FDRS1230M | FDRS1515M | FDRS1530M |
| Capacity | 1500kg | 3000kg | 1500kg | 3000kg | 1500kg | 3000kg |
| Division | 0.2 | 0.5kg | 0.5 | 1kg | 0.2 | 0.5kg | 0.5 | 1kg | 0.2 | 0.5kg | 0.5 | 1kg |
| Size | 1000x1000mm | 1200x1200mm | 1500x1500mm | |||
| Weight | 130kg | 154kg | 273kg | |||
Plaform Sizes
1000 x 1000mm
1200 x 1200mm
1500 x 1500mm
Capacity
1500kg | 3000kg
Division
0.2kg | 0.5kg | 1.0kg
Load Cell Approval
M28s – CE
M28i – OIML
B8D – OIML/NTEP
Load Cell Protection
IP67
Operating Temperature
-10 – 40°C
Power
100-240V DC/ AC adaptor
Battery: 6V1.2Ah – K7s
Battery: 6V2.8Ah – X3WGM
Indicator & Protection
K7s – CE – IP66
X3WGM – OIML/EC Type – IP66
Display
37mm FSTN LCD – K7s
20mm green LED – X3GM
Unit
Kg/lb,g/oz ,t – K7s
Kg/lb – X3GM
Output
RS232 * 2 – K7s
RS232 – X3GM
Contact form description text
Load Cell Approval
M28s – CE
M28i – OIML
B8D – OIML/NTEP
Indicator & Protrction
K7s – CE – IP66
X3WGM – OIML/EC Type -IP66
