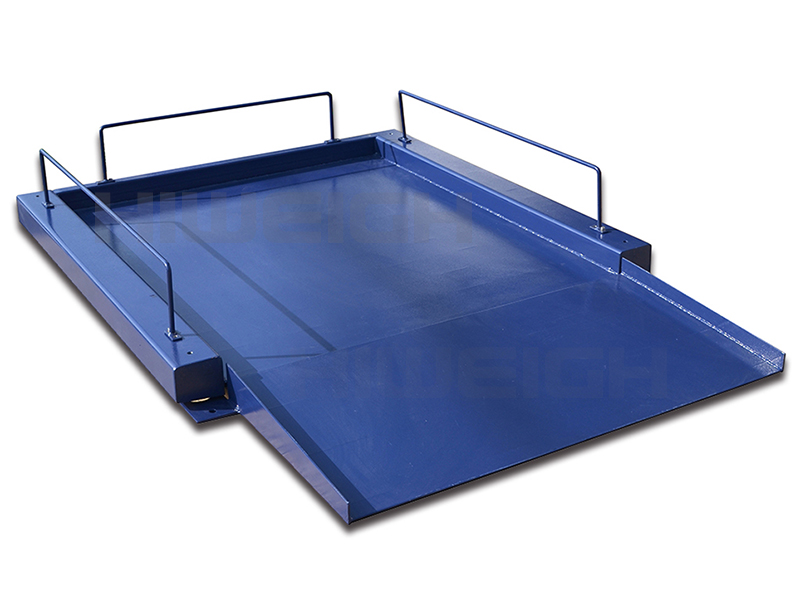

FDR floor scale
Low Profile Platform
Smooth plate with guide rail – optional checked plate. Detachable ramp (default of 300mm) – optional 500mm ramp. Capacity up to 3000kg. Powder coated finish. Optional wilress connection.
M28 | H8C LoadCell
IP67 protection, with alloy steel feet. Models1 with standard M28 load cells. Models2 with OIML/NTRP approved H8C load cells.
X3A Indicator
ABS housing. Stainless steel bracket. Table top or wall-mounting. X3AC – models1 (CE). X3AM – models2 (CE | OIML). Rechargeable battery. Programming zero tracking. Kg/lb units. Counting function. Animal weighing. Hold function. Power saving mode. Accumulation. RS232 interface.
Accessories
ISA|MDS
Models
| Part No. | 100345 | 100346 | 100347 | 100348 | 100349 | 100350 |
| Models 1 | FDR1015 | FDR1030 | FDR1215 | FDR1230 | FDR1515 | FDR1530 |
| Part No. | 100351 | 100352 | 100353 | 100354 | 100355 | 100356 |
| Models 2 | FDR1015M | FDR1030M | FDR1215M | FDR1230M | FDR1515M | FDR1530M |
| Capacity | 1500kg | 3000kg | 1500kg | 3000kg | 1500kg | 3000kg |
| Division | 0.2 | 0.5kg | 0.5 | 1kg | 0.2 | 0.5kg | 0.5 | 1kg | 0.2 | 0.5kg | 0.5 | 1kg |
| Size | 1000x1000mm | 1200x1200mm | 1500x1500mm | |||
| Weight | 130kg | 154kg | 273kg | |||
Plaform Sizes
1000 x 1000mm
1200 x 1200mm
1500 x 1500mm
Capacity
1500kg | 3000kg
Division
0.2kg | 0.5kg | 1.0kg
Load Cell Approval
M28 – CE
H8C – OIML|NTEP
Load Cell Protection
IP67
Operating Temperature
-10 – 40°C
Power
100-240V – 12V adaptor
Battery: 6V2.8Ah
Battery life: 24 hours
Indicator & Approval
X3AC – CE
X3AM- – OIML/EC Type
Display
X3AC – 1” FSTN LCD
X3AM – 1” LCD
Unit
Kg/lb
Output
RS232
Contact form description text
Load Cell Approval
M28N – CE
M28 – OIML
H8C – OIML | NTEP
Indicator Approval
X3AC – CE
X3AM – OIML/EC Type
