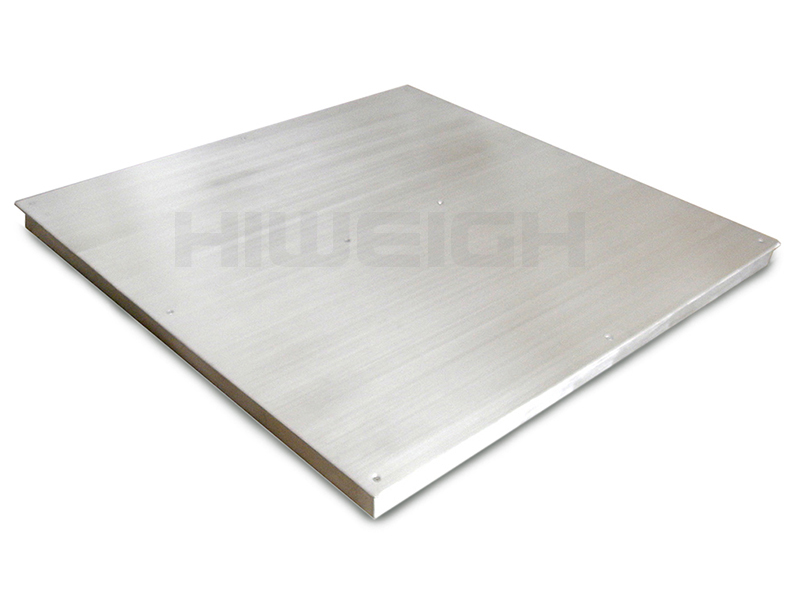

FCS stainless steel floor scale
SUS304 stainless steel material.Big backlit FSTN LCD display, the weight can be read clearly even in the sun.
SUS304 I SUS316 Platform

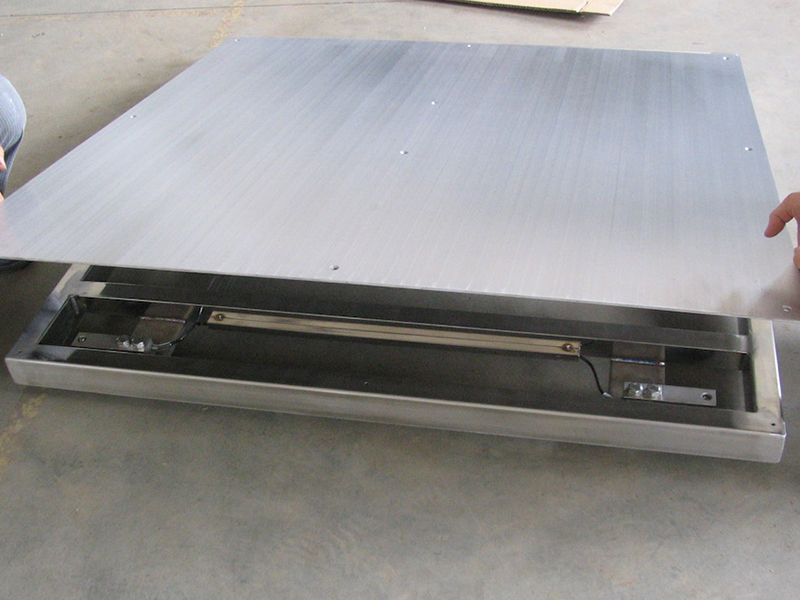

SUS304 stainless steel material. S.S tube structure with detachable plate – fixed by screws, easy to open and clean. 3 different platform size for selection – customized platform available. Optional SUS316 top plate.
M28s I B8D Load Cell
Standard s.s M28s load cell – Models1. OIML/NTEP approved s.s B8D load cell – Models2. 17-4Ph material, IP67 protection.
K7s Indicator – Models1
Big backlit FSTN LCD display, the weight can be read clearly even in the sun. SUS304 s.s IP66 housing,suitable for harsh environment, with rechargeable battery, 100-240v power source directly, kg/lb unit exchange, animal weighing function, accumulating, hold, x10 accuracy, counting, zero, tare, printing, etc. Default with 2 RS232 connector,options of Bluetooth or WiFi.
Indicator X3GM – Models2
OIML/EC Type approved. Rechargeable battery, Programming zero tracking, Kg/lb units, counting function, animal weighing, Hold function, accumulation, RS232 interface.
Accessories
ISB | ISC|MDSS|RFS
Models
| Part No. | 100389 | 100390 | 100391 | 100392 | 100393 | 100394 |
| Models 1 | FCS1015 | FCS1030 | FCS1215 | FCS1230 | FCS1515 | FCS1530 |
| Part No. | 100395 | 100396 | 100397 | 100398 | 100399 | 100400 |
| Models 2 | FCS1015M | FCS1030M | FCS1215M | FCS1230M | FCS1515M | FCS1530M |
| Capacity | 1500kg | 3000kg | 1500kg | 3000kg | 1500kg | 3000kg |
| Division | 0.2 | 0.5kg | 0.5 | 1kg | 0.2 | 0.5kg | 0.5 | 1kg | 0.2 | 0.5kg | 0.5 | 1kg |
| Size | 1000x1000mm | 1200x1200mm | 1500x1500mm | |||
| Weight | 75kg | 85kg | 135kg | |||
Plaform Sizes
1000 x 1000mm
1200 x 1200mm
1500 x 1500mm
Capacity
1500kg | 3000kg
Division
0.2kg | 0.5kg | 1.0kg
Load Cell Aproval
M28s – CE
B8D – OIML/NTEP
Load Cell Protection
IP67
Operating Temperature
-10 – 40°C
Power
100-240V DC/AC adaptor
Battery: 6V1.2Ah – K7s
Battery: 6V2.8Ah – X3GM
Display
37mm FSTN LCD – K7s
20mm green LED – X3GM
Unit
Kg/lb/g/oz – K7s
Kg/lb – X3GM
Output
RS232 * 2 – K7s
RS232 – X3GM
Contact form description text
Load Cell Approval
M28s- CE
B8D – OIML/NTEP
Indicator
K7s – CE
X3GM – OIML/EC Type
