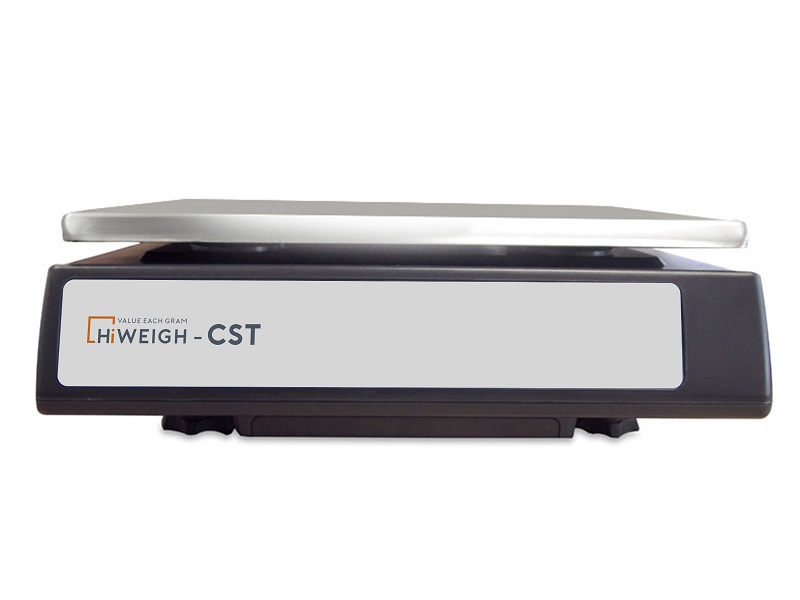

CST Bench Scale
Features
Rugged ABS housing.
Big s.s pan 310 x 220mm.
EC Type approved – CST*M models
Big LCD display with backlit.
Rechargeable 6V battery – 320hrs operating time (no backlight).
High accuracy of 1/30,000 – approved model till 1/3,000 only.
Aluminum load cell supporter.
22 operating keys.
Checkweigh function.
Counting function.
Full capacity tare.
Accumulation function.
Accumulation recall.
Gravity value set.
Hold function.
Auto power off.
RS232 optional.
Bluetooth optional.
WiFi optional.
Models
Part No. | 100858 | 100859 | 100860 | 100861 |
Models | CST3 | CST6 | CST15 | CST30 |
Capacity | 3kg | 6kg | 15kg | 30kg |
Division | 0.1g | 0.2g | 0.5g | 1g |
Pack Size | 75x45x34cm(4pcs) | |||
Weight | 17kg(4pcs) |
Part No. | 100862 | 100863 | 100864 | 100865 |
Models | CST3M | CST6M | CST15M | CST30M |
Capacity | 3kg | 6kg | 15kg | 30kg |
Division | 1g | 2g | 5g | 10g |
Pack Size | 75x45x34cm(4pcs) | |||
Weight | 17kg(4pcs) |
Power
100-240V – 12V1A adaptor
Rechargeable Battery: 6V4Ah
Estimated working time:
320hrs – no backlit
120hrs – backlit
Charge Time: 3hrs
Pan Dimensions
310 x 220mm
Capacity
3 | 6 | 15 | 30Kg
Display Resolution
1/3,000 | 1/30,000
Net Weight
3.8Kg
Display
LCD (30mm)
Units
Kg | lb | g | oz
Sampling Speed
15 times/second (7.5 | 30 for selection)
Non-linearity
≤0.01%F.S.
Power Consumption
12mA – no backlit
36mA – with backlit
48mA – with backlit | RS232
Operating Temperature
-10°C – 40°C
Storage Temperature
-25°C – 55°C
Relative Humidity
≤80% non-condensing
RS232
Optional
Contact form description text
CE
EC Type (DK0199.403)
