BSE Aluminum Platform Scale with big LCD

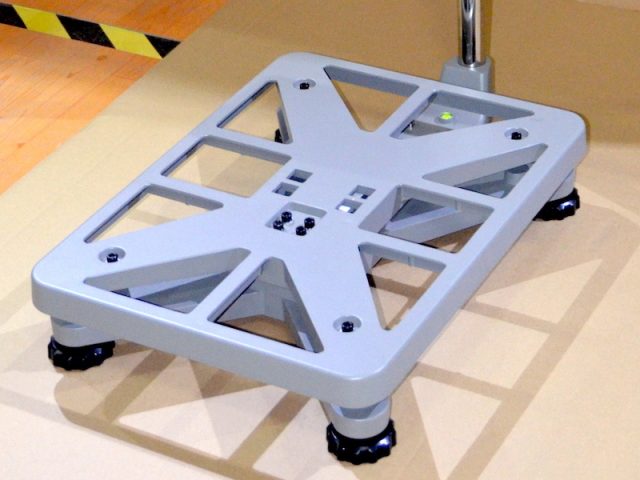

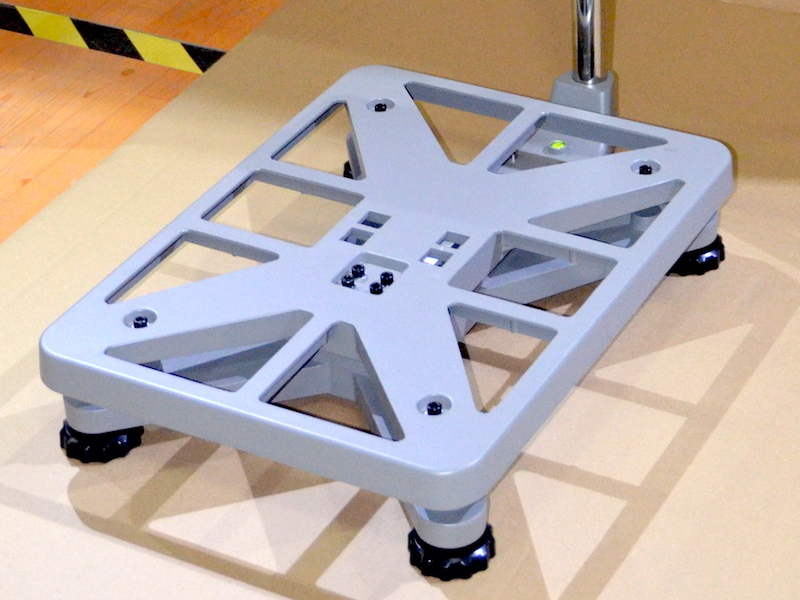

Aluminum Platform
BSE Aluminum Platform Scale made with rugged aluminum cast platform. SUS304 stainless steel cover. Heavy duty design up to 500Kg. Aluminum pole holder. Overloading protecting.
IP65 Load Cell
Standard M15/M17 load cells
Aluminum alloy material , IP65
K7a Indicator
Big backlit FSTN LCD display. – the weight can be read clearly even in the sun. With rechargeable 6V4Ah battery. 100-240v power source directly. kg/lb, g/oz units exchange. Real-time clock. Checkweigh with three LED lights. Animal weighing function, accumulating, hold x10 accuracy,counting, zero, tare, printing, etc. Default with 2 RS232 interface. Option of Bluetooth output. Option of WiFi output. Option of Relay output.
Options
Optional adjustable pole supporter Optional rectangular pole.
Models
| Part No. | 100096 | 100097 | 100098 | 100099 | 100100 | 100101 | 100102 | 100103 | 100104 |
| Models | BSE3030 | BSE3060 | BSE3150 | BSE4060 | BSE4150 | BSE4300 | BSE5150 | BSE5300 | BSE5500 |
| Capacity | 30kg | 60kg | 150kg | 60kg | 150kg | 300kg | 150kg | 300kg | 500kg |
| Division | 5g | 10g | 20g | 10g | 20g | 50g | 20g | 50g | 50g |
| Size | 300x400mm | 400x500mm | 450x600mm | ||||||
| Weight | 9kg | 14.5kg | 18.5kg | ||||||
Power
100-240V 50/60Hz
Battery: 6V4Ah
Estimated Battery Life: 30 hours
Charge Time: 8 Hours
Display Resolution
1/3,000 – 1/15,000
Platform Sizes
300 x 400mm
400 x 500mm
450 x 600mm
Capacity
30 – 500kg
Load Cells
M15/M17 – IP65
Display
FSTN LCD – 37mm
Units
Kg/lb g/oz
Output
RS232 * 2
optional Bluetooth
optional WiFi
Operating Temperature
-10°C – 40°C
Approval
CE
